{"id":26410,"date":"2019-10-22T13:23:43","date_gmt":"2019-10-22T10:23:43","guid":{"rendered":"http:\/\/koda.ua.dev.cc\/product\/rs5-laser-scanner\/"},"modified":"2021-12-01T10:58:54","modified_gmt":"2021-12-01T08:58:54","slug":"rs5-laser-scanner","status":"publish","type":"product","link":"https:\/\/test.koda.ua\/en\/product\/rs5-laser-scanner\/","title":{"rendered":"RS5 Laser Scanner"},"content":{"rendered":"

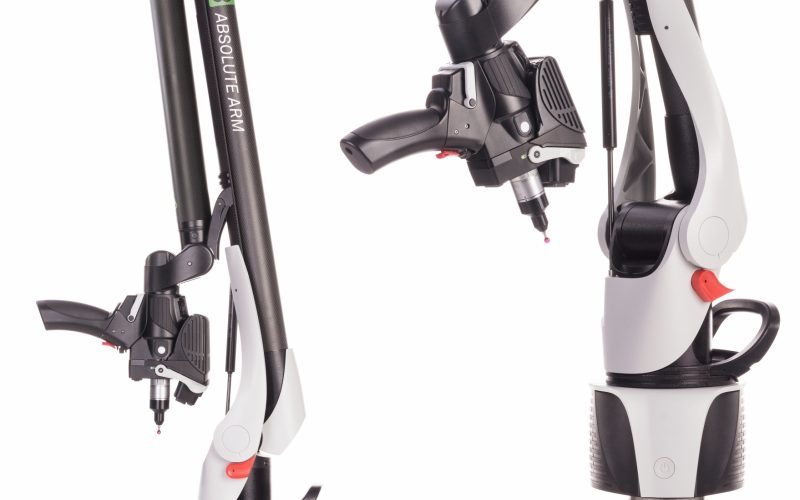

The new RS5 Laser Scanner is the basis of high-precision three-dimensional scanning and digitization of objects. It is a removable red color laser scanner, created to use with coordinate measuring hand Absolute Arm 7-Axis<\/a>. It provides high-speed three-dimensional scanning of surfaces and parts of different processing quality and material. Due to the horizontally oriented laser scanning lines with a width of 150 mm and fully automatic setting of exposure time, RS5 scanner makes noncontact three dimensional digitizing faster, easier and more accurate than ever before.<\/p>\n

Scanner can be easily removed from the portable measuring arm, making using contact measurement functions easier and safer. Then it can be put back in place without requiring recalibration: just start a three-dimensional scan. With no high-definition mode limiting the speed and width of the scanning line to ensure maximum accuracy, the RS5 scanner continuously maintains maximum performance: maximum frame rate at maximum laser width.<\/p>\n

The RS5 laser scanner is the pinnacle of three-dimensional scanning technology; combined with the Absolute Arm 7-Axis manipulator, it makes an ideal all-purpose portable solution for scanning small and medium sized parts.<\/p>\n

<\/a><\/p>\n

Features and benefits<\/b><\/p>\n

Scanning line<\/b><\/p>\n

Thanks to<\/p>\n\n\n\n
Accuracy<\/td>\nPoint Acquisition Rate<\/td>\nPoints per Line<\/td>\nLine Rate<\/td>\nLine Width (mid)<\/td>\nDistance to the surface (middle of the range)<\/td>\nMinimum pitch increment (middle of the range)<\/td>\nSystem Scanning Certification<\/td>\nLaser safety class<\/td>\nOperating Temperature<\/td>\n<\/tr>\n
0.028 mm (2σ)7<\/td>\n752 000 points\/s<\/td>\nMax. 7520<\/td>\nMax. 100 Hz<\/td>\n115 mm<\/td>\n165 \u00b1 50 mm<\/td>\n0.011 mm (line)<\/td>\nyes<\/td>\n2M<\/td>\n5\u201340\u00b0C<\/td>\n<\/tr>\n<\/tr>\n<\/table>\n","protected":false},"excerpt":{"rendered":"

Modern laser scanner designed to work with coordinate measuring arm Absolute Arm 7-Axis<\/p>\n","protected":false},"featured_media":26413,"template":"","meta":[],"product_cat":[1969],"product_tag":[],"producers":[],"_links":{"self":[{"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/product\/26410"}],"collection":[{"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/product"}],"about":[{"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/types\/product"}],"version-history":[{"count":1,"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/product\/26410\/revisions"}],"predecessor-version":[{"id":46898,"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/product\/26410\/revisions\/46898"}],"wp:featuredmedia":[{"embeddable":true,"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/media\/26413"}],"wp:attachment":[{"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/media?parent=26410"}],"wp:term":[{"taxonomy":"product_cat","embeddable":true,"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/product_cat?post=26410"},{"taxonomy":"product_tag","embeddable":true,"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/product_tag?post=26410"},{"taxonomy":"producers","embeddable":true,"href":"https:\/\/test.koda.ua\/en\/wp-json\/wp\/v2\/producers?post=26410"}],"curies":[{"name":"wp","href":"https:\/\/api.w.org\/{rel}","templated":true}]}}
