Multicomponent dosing weighing terminal is used in weight systems if you need to control automatically the process of the preparation of mixtures with several components by weighing.
\nPurpose: The weighing terminal is designed for dosing up to 6 components. Memory can be programmed up to 9 different recipes of mixtures. For each of them it can be written its own dosing algorithm. Terminal KV receives data from 8 external sensors and performs certain actions in accordance with the program.
\nThe terminal has 12 relay outputs. There are contacts in each relay output, which connect or disconnect in accordance with the selected dosing mode. At a zero value the relay channel turns off. In other modes, the initial state of relay outputs selected by the user according to the tasks.
\nThe operator can independently write a program for dosing, which will be based on needed tasks, and reconfigurate for different process.
\nKV terminal keeps records of the weighted product and its components.

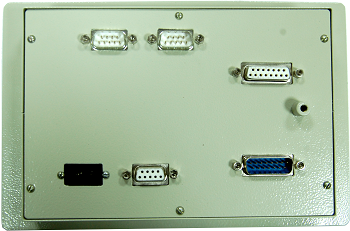

\nKV terminal has the ability to transfer data to the PC or controller via interfaces RS232, RS485, analog output 4-20 mA, 0-10 V.
\n<\/a>Body is made of stainless steel; installation of the metering terminal is possible into the control cabinet or on the table.<\/b><\/p>\n
